Fantas Maxway 48V500W 20-inch fat tire folding electric bike for snow beach

1. Provide customized service. 2. Foldable easy to carry.Powerful. 3. CE EN15194 EMC TUV ROHS UL SGS GS qualifications. 4. We have our own warehouse and after-sale service company in the United Kingdom and the U.S.A.
Availability:
Quantity:
  • Maxway fat-tire electric bike

  • FANTAS

  • MAXWAY

FANTAS Makes Best fat tire folding electric bike

Product Description

主图maxway (2)

Specifications

1. Provide customized service.

2. Foldable easy to carry.Powerful.
3. CE EN15194 EMC TUV ROHS UL SGS GS qualifications.
4. We have our own warehouse and after-sale service company in the United Kingdom and the U.S.A
.



Configuration
ECO Model
PRO Model
Motor
 Mxus brushless Gear Motor
BAFANG brushless Gear Motor
Power
250W/350W
500w/Customize
Battery
SamSung 48V8Ah
SamSung 48V10Ah
Controller
Fantas waterproof controller
Bafang waterproof controller
Frame Material
Aviation Aluminum
Aviation Aluminum
Display
Fantas LED display
Fantas  Mid-LCD alloy display
Seat
Justek Foam sponge,PU material
SR Memory foam sponge,
Stem
Zoom
Zoom
Brake lever
Unit-Star
TEKTRO
Light
SPANNINGA   GALEO
SPANNINGA    KENDO+
Grip
VELO   Aluminum alloy ring lock
VELO  Mode : VLG-1185AD3
Rims
AOLI  Mode : AL-07
AOLI Mode : AL-07
Tire
Kenda Fat Urban Tire Mode : K1151
Kenda Fat Urban Tire Mode : K1151
Transmission
Shimano 7 speeds(CS-HG200-7)
Shimano 7 speeds(CS-HG200-7)
Chain
KMC Seven-speed special chain
KMC Seven-speed special chain
Chain Pad
Fantas Mode : SOLID-252PP-3-F
Prowheel Mode : PIONEER-238AA
Pedal
Wellgo
Wellgo
Warranty
36mth
36mth


Detailed Images

坐垫max

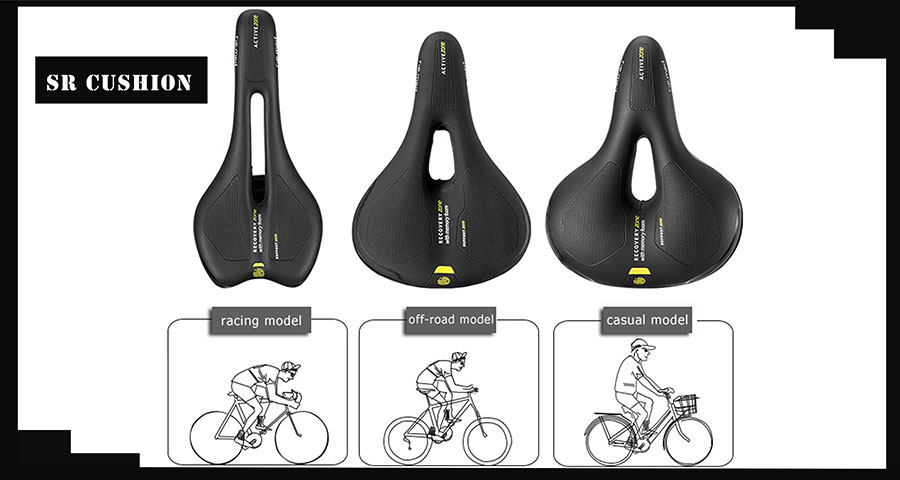

SR Cushion

Our  fat tire folding electric bike have three choice for cushion.
It all with black CP pagoda spring and the tail with Liu Ding,comfortable for riding.



电机max

BAFANG Motor

A:97mm  B:68mm  C:158.5mm  D:145mm  E:44mm  F:33mm  G:2-M12X1.25-6g
H:2.7mm  I:26.5mm  J:43.5mm  K:15.25  WL:84.6  WR:90.4mm  OLD:175mm


牙盘max

Chain Pad

Aluminum alloy crank and high strength steel tooth discs,T6 heat-treat make it more durable.
From TAIWAN Prowheel ,this is a manufacturer specializing in the production of dental discs.


微信图片_20180920155829




变速max

Shimano transmission system

Our fat tire folding electric bike use the highest quality transmission Shimano transmission.
The Shimano transmission system uses low section design which can apply to all kinds of terrain.



避震max

Meshanical  Damping Forks

Our fat tire folding ebike use oil spring structure,fork foot stronger.
Light weight MG magnesium alloy outer foot tube,mold design,stroke tube diameter 32MM.



显示max

LCD Display

Our folding electric bike use mid-LCD alloy display.
Rated Voltage(DCV) 48,Support Modes 0-5,Operating Temperature -20 - 45℃



防水线max

Waterproof line

PE plastics are used in copper wire insulation

Suitability EB-BUS Connector Size(mm) Max Ø 9*35,IP-Code IP 65.



碟刹max

Brake System

HD-E350 Hydraulic disc brake Lever .Cast Aluminum Lever & Bracket.
Reach adjustment.Two Pieces Hinged Bracket.2 Finger Blade.



电池max

Battery

Our fat tire folding ebike use high quality sliver fish battery.
Range per power(Trip Distance) : 32km (use throttle) 61km (use pedal assist)



FANTAS BIKE CO.,LTD one of electric bike china manufacturers,was found in 2008 ,which located in Changzhou city,Jiangsu province. Our producing capacity is 100,000 pcs a year. We have three big producing workshops, test laboratory, frame workshop and painting room. For the past several years we have been a company dedicated to designing the most attractive ebikes,like folding electric bike,fat tire electric bike,mountain e bike,etc.


FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
