Fantas F20 good quality 750W 20inch electric fat tire bicycle foldable snow e-bike for adult

1. Provide customized service. 2. Foldable easy to carry.Powerful. 3. CE EN15194 EMC TUV ROHS UL SGS GS qualifications. 4. We have our own warehouse and after-sale service company in the Italy and the USA
MOTOR:
BATTERY:
COLOR:
Availability:
Quantity:
  • 20'' foldable snow e-bike

  • FANTAS

  • F20-A

F20-T

F20 INTRODUCTION

A popular model in Europe and the United States, the straight frame can be painted in a variety of colors and the adjustable seat tube can fit people of all heights.  Tires can be road tires or snow tires, so it can adapt to all kinds of terrain, mountain, beach and even snow.  The battery is installed under the pipe, and the number of electric cells is not limited. The high-end foldable fat tire electric bike FANTAS F20 is more suitable for traveling in the city. The use of internationally renowned brand accessories has passed a number of professional tests such as battery explosion-proof test, uphill test, and electronic control system test. Use strong and pressure-resistant packaging to ensure that the electric vehicle is not damaged during transportation.

We have long-term customers in many countries, such as UK, USA, Russia, Italy and India, etc.  We built up trust with each other.  Because we are an honest company, and we have a perfect after-sales system. I have great confidence in the quality of our e-bikes.

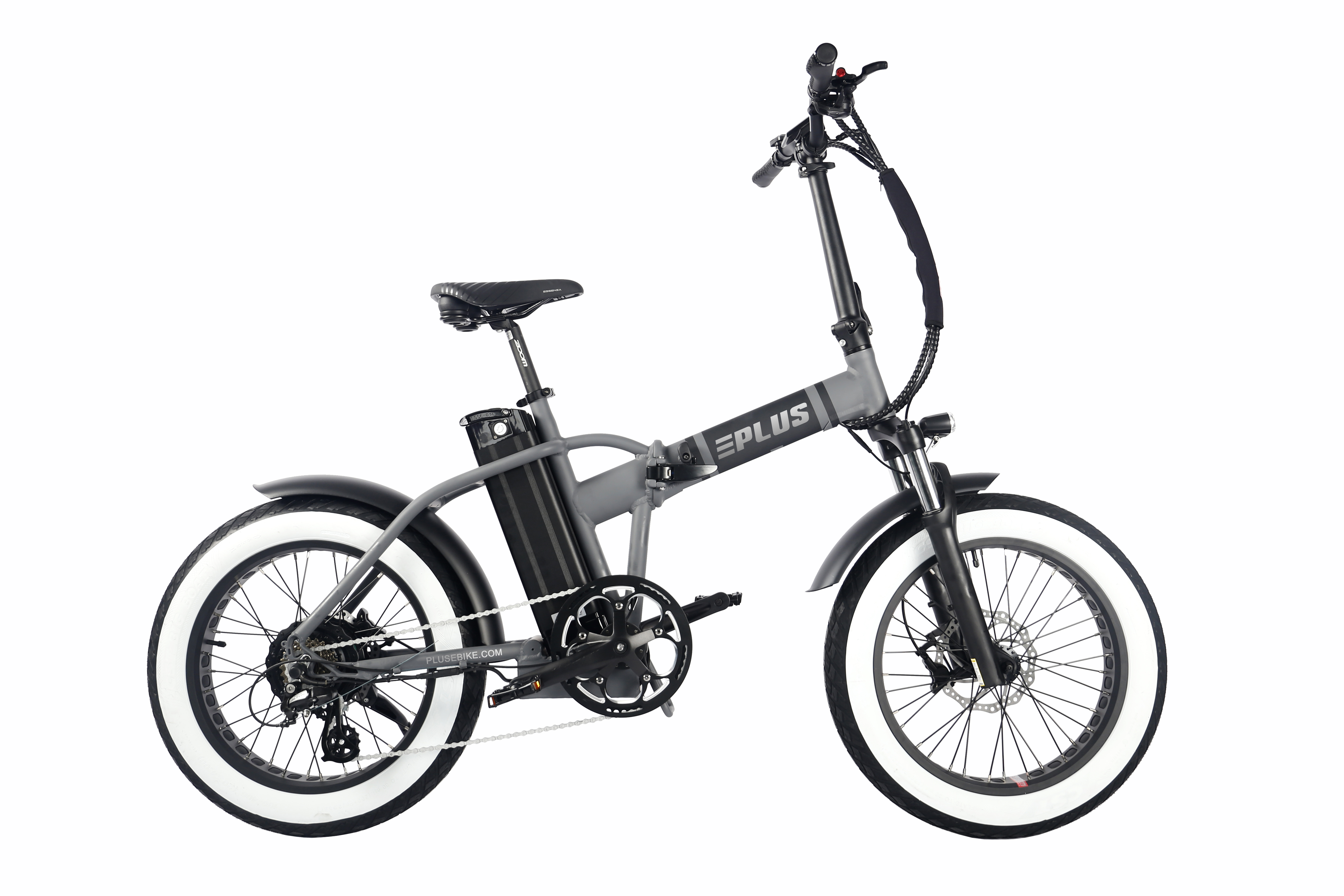

P_MG_9796

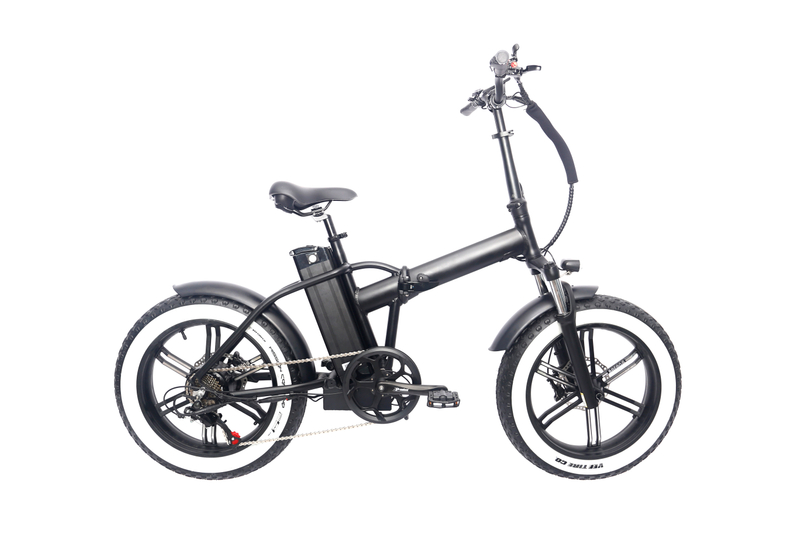

一体轮

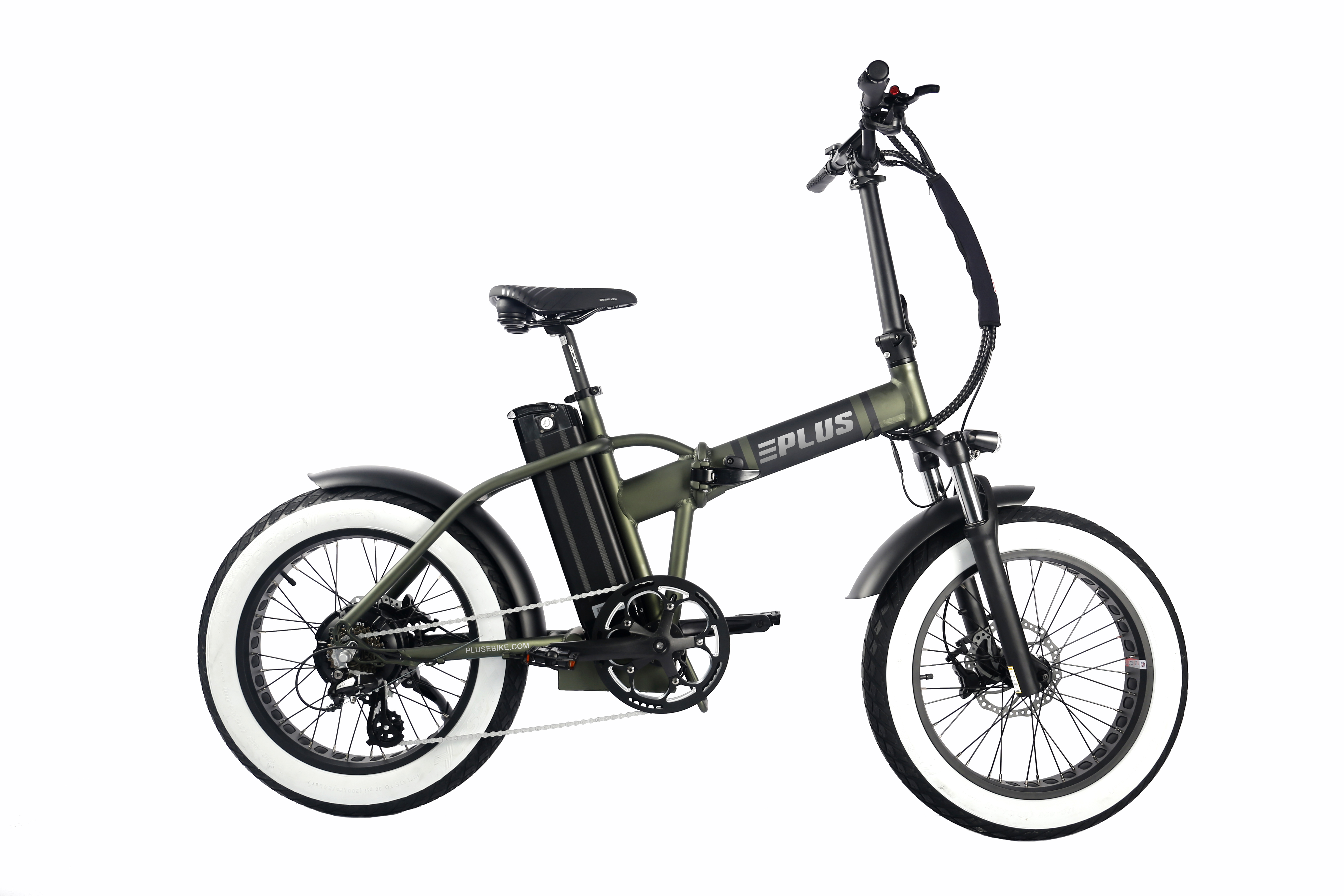

P_MG_9774


TECHS AND FEATURES


F20-T-FRAME

FRAME

FOLD 20" / AL6061 / DISK

  • Self-locking folder
    Upgraded safer self-locking folder, double insurance, easy  operation.

  • One-piece forged hook claws
    Designed holes for installing the rear hanger and foot support.

  • Controller Box
    BIKE's high-power controller can be installed, and it can also be compatible with the general low-probability controller on the market.

  • The color of the frame can be customized according to customer requirements. Such as army green, navy blue, matte black, silver, white, pink, purple or even golden colour.


MOTOR

MOTOR

  • BAFANG REAR HUB MOTOR

    Rated Power: 350W/500W/750W/1000W

  • BAFANG INTEGRADTED ALLOY ONE-WHEEL REAR MOTOR

    Rated Power: 750W

  • We can also use other brand of motor, such as AKM, JNW, both good brands of motors, but a little cheaper than Bafang, this is up to you.

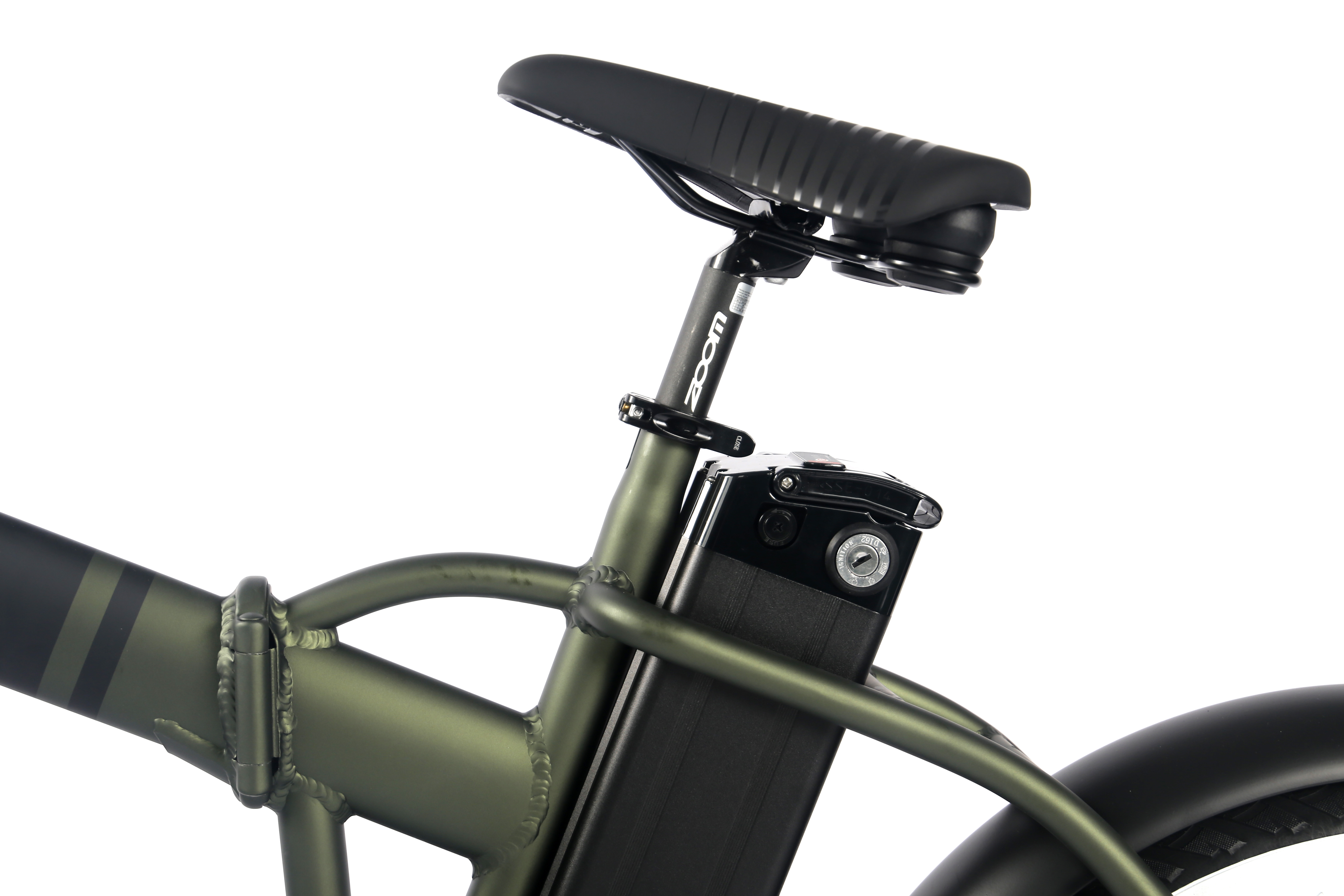

P_MG_9767

BATTERY

LG/SAMSUNG LITHIUM LI-ION BATTERY

MODEL: SILVER FISH

Standerd: 48V 17.5Ah
Option: 48V 13Ah / 15.6Ah / 17.5Ah / 21Ah

The battery capacity can be selected according to the customer's needs. The larger the battery capacity, the greater the range of cycling when fully charged.


P_MG_9770 (1)

FRONT FORK

When you ride an electric bike to quickly respond to every curve, down and uphills, MOZO suspension fork bring you to get the most exciting riding fun.

  • Light, safe and easy operating design.

  • Suspension function could be locked directly from the knob on the fork crown.

  • Just one easy turning on the fork knob to makes your suspension fork goes rigid.

  • Hydraulic rebound adjust offer the wide rangeoof damping performance to meet the riding demand.



935a0e9885010cb3479d5811bb5288e

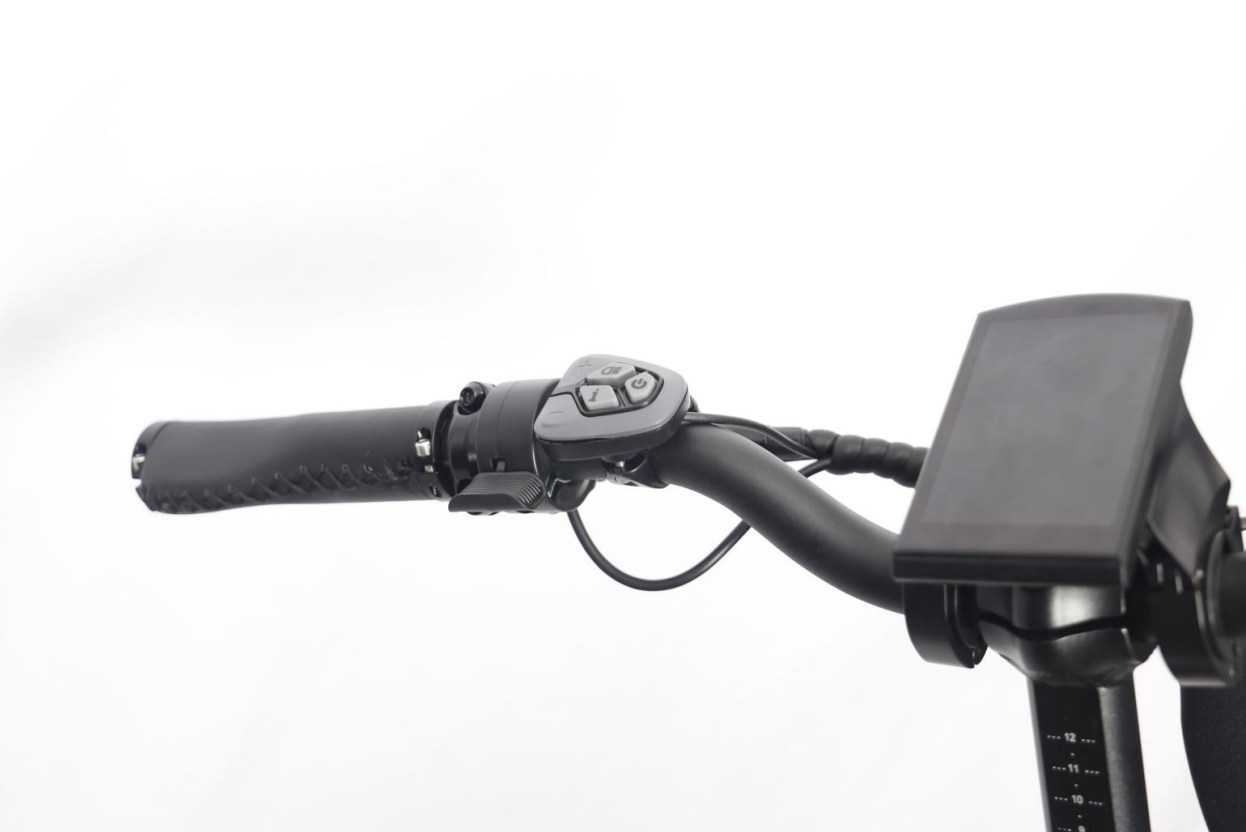

COLOR DISPLAY

KD986,E-bike Intelligent color LCD display

Waterproof Rating: IP67

Display Type:HIGH Luminance TFT

Voltage:48v

PAS Level:0-5

The display can set the maximum speed you want, the boot password and even the boot logo.

We also have other models of display to choose from.


微信图片_202110121020316

DERAILLEUR

  • Super low-profile concept with SHADOW mechanism

  • Wider linkage ensures durability and more precise shifting

  • Quick and easy wheel installation

  • Easy adjustment and maintenance

  • High-level surface treatment

  • We usually use Shimano 7 speed transmission, of course 8 speed and 9 speed are available.




SPECIFICATION

COMPONENTS
ECO PLUS
FRAME FOLD   20"/AL6061/DISK FOLD   20"/AL6061/DISK
FORK Suspension fork MOZO Suspension fork
HANDLEBAR ZOOM   MTB-/AL-/155/ISO-C/M ZOOM   MTB-/AL-/155/ISO-C/M
STEM Folding stem Foldable stem
SEAT TUBE ZOOM φ27.2*400mm ZOOM φ27.2*400mm
TIRE 20*4.0 KENDA  VEE  MISSION 20 x 4.0'' MPC - Multiple Purpose Compound 72TPI
CONTROLLER 25A sine wave controller 25A sine wave controller
CABLES Full set of waterproof integrated cables Full set of waterproof integrated cables
RIM Aluminum   alloy with shock-absorbing holes Aluminum alloy with shock-absorbing holes
DERAILLEUR SHIMANO TOURNRY 7speed SHIMANO ALTUS RD M310DLC 8SPEED
SHIFT LEVER SHIMANO 7speed SHIMANO M315   8RC
FREE WHEEL SHIMANO 7speed 14-28T 8speed 11-34T
CRANK prowheel 52T prowheel OUNCE 253A CUSTOM MADE 53T
BRAKE ZOOM HB-875-E  Hydraulic disc brake with 180mm pad TEKTRO E500 Hydraulic disc brake with 180mm pad
LIGHT PREMIUM LIGHT–HL3001 PREMIUM LIGHT–HL3001
MOTOR BAFANG 48V500W 48V750W/1000W BAFANG
SENSOR PLUS SPEED SENSOR 12L PLUS SPEED SENSOR 12L
PEDALS Folding aluminum pedal Folding aluminum pedal
DISPLAY KD716 KD986 color LCD display
BATTERY 48V13Ah china battery 48V17.5AhLG battery
GRIP  CH Leather Grip  PROPALM Leather Grip
CUSHION YG Leather cushion SELLE   ROYAL NEW LOOKIN A238U
FENDER Aluminum fenders Aluminum fenders
CHARGER 2A 2A / 3A


SIZE

微信图片_20211014110808

The above data are all measured manually, please allow the error range of 3-5cm. Thank you.


FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU, DDP.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
