Fantas CARRO full suspension fat tire electric bicycle foldable snow e-bike

1. Provide customized service. 2. Foldable easy to carry.Powerful. 3. CE EN15194 EMC TUV ROHS UL SGS GS qualifications. 4. We have our own warehouse and after-sale service company in the Italy and the USA
MOTOR:
BATTERY:
COLOR:
Availability:
Quantity:
  • CARRO 20'' e-bike

  • FANTAS

  • CARRO 2021

CARRO INTRODUCTION

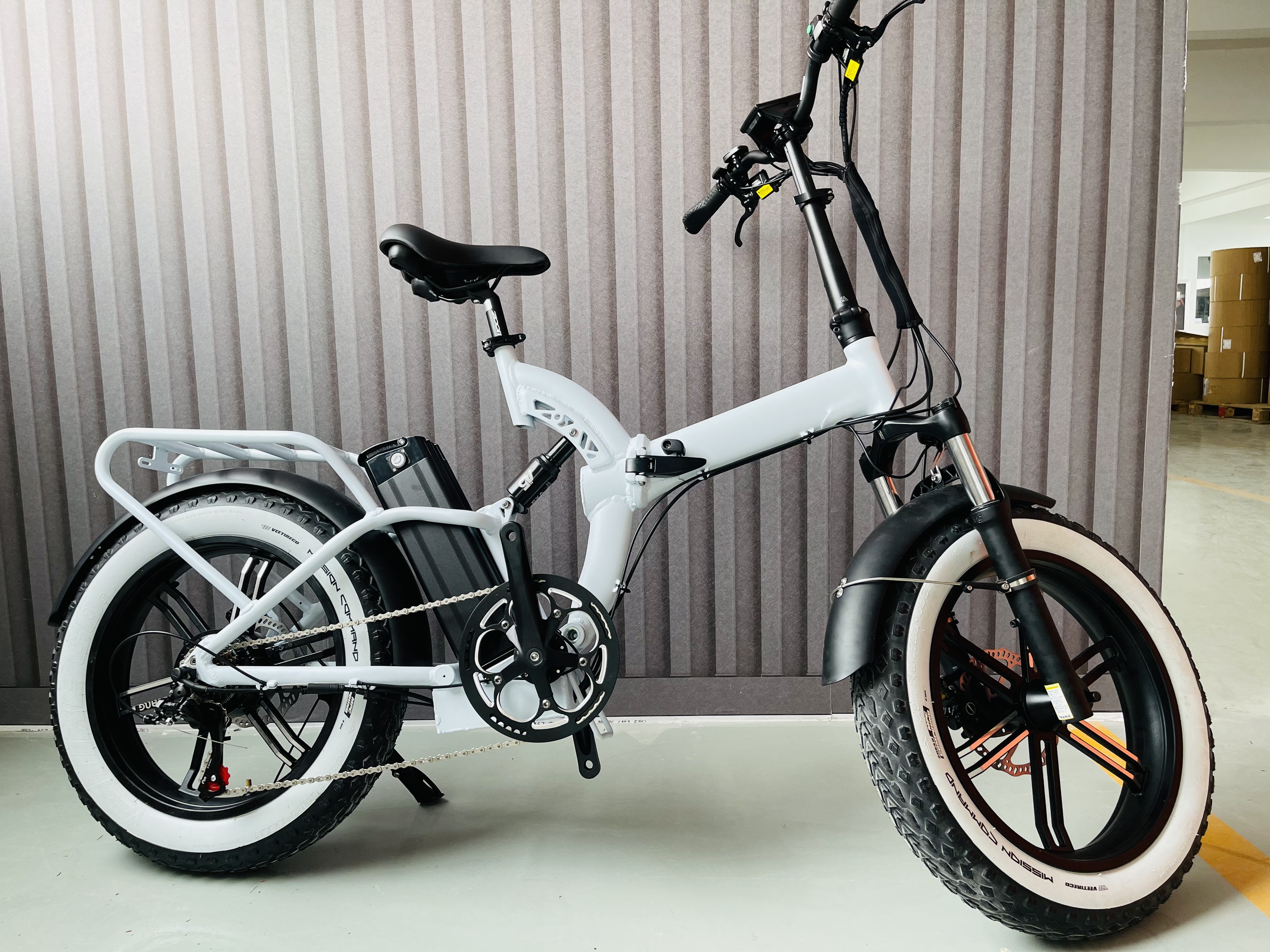

微信图片_202110131415391


The frame of this model is different from that of other regular 20-inch folding bikes, this is full suspension model, with suspension front fork and rear shock. The high-end foldable fat tire electric bike FANTAS CARRO is more suitable for traveling in the city, also suitable for snow and beach. The use of internationally renowned brand accessories has passed a number of professional tests such as battery explosion-proof test, uphill test, and electronic control system test. Use strong and pressure-resistant packaging to ensure that the electric vehicle is not damaged during transportation.

As an experienced electric bicycle manufacturer and supplier from China, FANTAS BIKE always produces high-quality OEM/ODM electric bicycles including mountain e-bike, city e-bike and folding e-bike. Set up service centers in the United Kingdom and Switzerland, and the professional team of PLUS EBIKE provides high-quality and convenient after-sales service at any time.














DSC00447


DSC004462


DSC0044300


xiaotubiao

TECHS AND FEATURES

CARRO-frame

FRAME

FOLDING 20" / AL6061 / DISK

  • Self-locking folder
    Upgraded safer self-locking folder, double insurance and very easy operation.

  • One-piece forged hook claws
    Designed holes for installing the rear hanger and foot support.

  • Controller Box
    25A-30A

    FANTAS BIKE's high-power controller can be installed, and it can also be compatible with the general low-probability controller on the market.

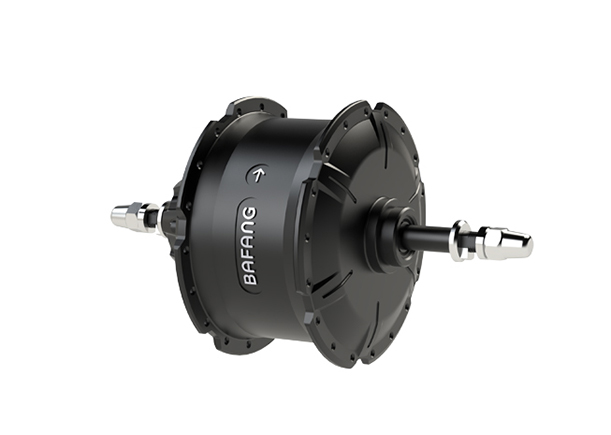

CARRO-motor

BAFANG MOTOR

  • BAFANG REAR MOTOR

  Rated Power: 350W/500W/750W/1000W

  • BAFANG ALLOY INTEGRATED ONE-WHEEL REAR MOTOR

  Rated Power: 750W

CARRO-shocks

BATTERY

LG/SUMSANG LITHIUM BATTERY

MODEL:SILVER FISH

Standerd: 48V 17.5Ah
Option: 48V 13Ah /15.6Ah / 21Ah / customized


CARRO-DERAILLEUR

DERAILLEUR

  • Shimano 7 speed transmission

  • Super low-profile concept with SHADOW mechanism

  • Wider linkage ensures durability and more precise shifting

  • Quick and easy wheel installation

  • Easy adjustment and maintenance

  • High-level surface treatment



SPECIFICATION

COMPONENTS
FRAME FOLD   20"/AL6061/DISK
FORK MOZO Suspension fork
REAR SUSPENSION EXA A5 AIR SUSPENSION
HANDLEBAR ZOOM   MTB-/AL-/155/ISO-C/M
STEM Foldable stem
SEAT TUBE ZOOM φ27.2*400mm
TIRE VEE  MISSION 20 x 4.0 MPC - Multiple Purpose Compound 72TPI
CONTROLLER 25A sine wave controller
CABLES Full set of waterproof integrated cables
RIM Aluminum alloy with shock-absorbing holes
DERAILLEUR SHIMANO ALTUS RD M310DLC 8SPEED
SHIFT LEVER SHIMANO M315   8RC
FREE WHEEL 8speed 11-34T
CRANK prowheel OUNCE 253A CUSTOM MADE 53T
BRAKE TEKTRO E500 Hydraulic disc brake with 180mm pad
LIGHT PREMIUM LIGHT–HL3001
MOTOR 48V1000W BAFANG
SENSOR PLUS SPEED SENSOR 12L
PEDALS Folding aluminum pedal
DISPLAY KD986 color LCD display
BATTERY 48V17.5AhLG battery
GRIP  PROPALM Leather Grip
CUSHION SELLE   ROYAL NEW LOOKIN A238U
FENDER Aluminum fenders
CHARGER 2A
REAR light star union

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU, DDP.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
