Fantas CARRO-S 1000W full suspension fat tire electric bicycle folding snow e-bike with retro big headlight

1. Provide customized service. 2. Foldable easy to carry. Powerful. 3. CE EN15194 EMC TUV ROHS UL SGS GS qualifications. 4. We have our own warehouse and after-sale service company in the Italy and the USA
MOTOR:
48V750W
48V1000W
52V1500W
BATTERY:
48V13Ah
48V17.5Ah
48V21Ah
52V25Ah
COLOR:
ARMY GREEN
MATTE BLACK
WHITE
CUSTOMIZE
Availability:
Quantity:
Inquire Add to Basket

  • CARRO 20'' e-bike

  • FANTAS

  • CARRO-S

CARRO-S INTRODUCTION


CARRO-S (1)

The frame of this model is different from that of other regular 20-inch folding bikes, this is full suspension model, with suspension front fork and rear shock, and can be install big retro LED front light. The high-end foldable fat tire electric bike FANTAS CARRO is more suitable for traveling in the city, also suitable for snow and beach. The use of internationally renowned brand accessories has passed a number of professional tests such as battery explosion-proof test, uphill test, and electronic control system test. Use strong and pressure-resistant packaging to ensure that the electric vehicle is not damaged during transportation.

As an experienced electric bicycle manufacturer and supplier from China, FANTAS BIKE always produces high-quality OEM/ODM electric bicycles including mountain e-bike, city e-bike and folding e-bike. Set up service centers in the United Kingdom and Switzerland, and the professional team of PLUS EBIKE provides high-quality and convenient after-sales service at any time.




微信图片_20211026100238


微信图片_202110261002381


微信图片_202110261002382


xiaotubiao

TECHS AND FEATURES

CARRO-S-FRAME

FRAME

FOLDING 20" / AL6061 / DISK

  • Self-locking folder
    Upgraded safer self-locking folder, double insurance and very easy operation.

  • One-piece forged hook claws
    Designed holes for installing the rear hanger and foot support.

  • Controller Box
    25A-30A

    FANTAS BIKE's high-power controller can be installed, and it can also be compatible with the general low-probability controller on the market.


CARRO-S-MOTOR

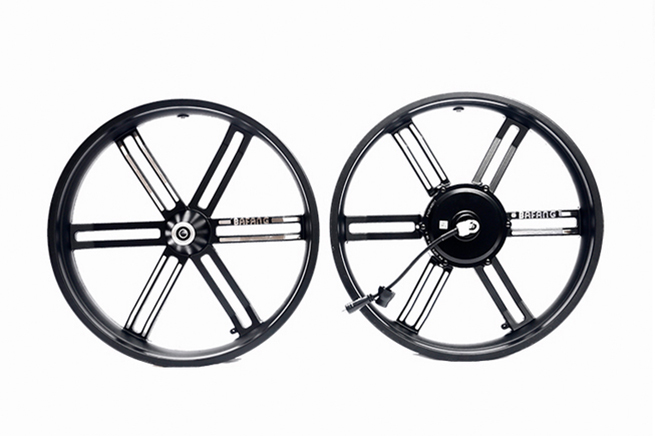

MOTOR

  • BAFANG REAR MOTOR

 Rated Power: 350W/500W/750W/1000W

  • BAFANG ALLOY INTEGRATED ONE-WHEEL REAR MOTOR

 Rated Power: 750W


CARRO-shocks

BATTERY

LG/SUMSANG LITHIUM BATTERY

MODEL:SILVER FISH

Standerd: 48V 17.5Ah
Option: 48V 13Ah /15.6Ah / 21Ah / customized


CARRO-DERAILLEUR

DERAILLEUR

  • Shimano 7 speed transmission

  • Super low-profile concept with SHADOW mechanism

  • Wider linkage ensures durability and more precise shifting

  • Quick and easy wheel installation

  • Easy adjustment and maintenance

  • High-level surface treatment


CARRO-S-FRONT-LIGHT

Front lights

1. Retro-fitted large headlight, controlled by a separate switch. 2. There is also a small LED front light controlled by the display.

CARRO-S-DISPLAY

Display

KDS986 color LCD display




SPECIFICATION

COMPONENTS
FRAME FOLD   20"/AL6061/DISK
FORK MOZO Suspension fork
REAR SUSPENSION EXA A5 AIR SUSPENSION
HANDLEBAR ZOOM   MTB-/AL-/155/ISO-C/M
STEM Foldable stem
SEAT TUBE ZOOM φ27.2*400mm
TIRE VEE  MISSION 20 x 4.0 MPC - Multiple Purpose Compound 72TPI
CONTROLLER 25A sine wave controller
CABLES Full set of waterproof integrated cables
RIM Aluminum alloy with shock-absorbing holes
DERAILLEUR SHIMANO ALTUS RD M310DLC 8SPEED
SHIFT LEVER SHIMANO M315   8RC
FREE WHEEL 8speed 11-34T
CRANK prowheel OUNCE 253A CUSTOM MADE 53T
BRAKE TEKTRO E500 Hydraulic disc brake with 180mm pad
LIGHT PREMIUM LIGHT–HL3001
MOTOR 48V1000W BAFANG
SENSOR PLUS SPEED SENSOR 12L
PEDALS Folding aluminum pedal
DISPLAY KD986 color LCD display
BATTERY 48V17.5AhLG battery
GRIP  PROPALM Leather Grip
CUSHION SELLE   ROYAL NEW LOOKIN A238U
FENDER Aluminum fenders
CHARGER 2A/3A
REAR light star union
